E-Force Marine Aurora Drive System

Aurora Drive offers three complete electric propulsion systems for marine applications. These systems are designed for boats that require direct drive motors. Unlike traditional internal combustion (IC) engines, Aurora Drives eliminate the need for raw water cooling, resulting in significantly less maintenance and easier installation.

Additionally, Aurora Drive systems come as drop-in replacements, allowing for seamless integration into existing boats. With a variety of battery pack options available, you can choose the system that best suits your boat’s power and range requirements.

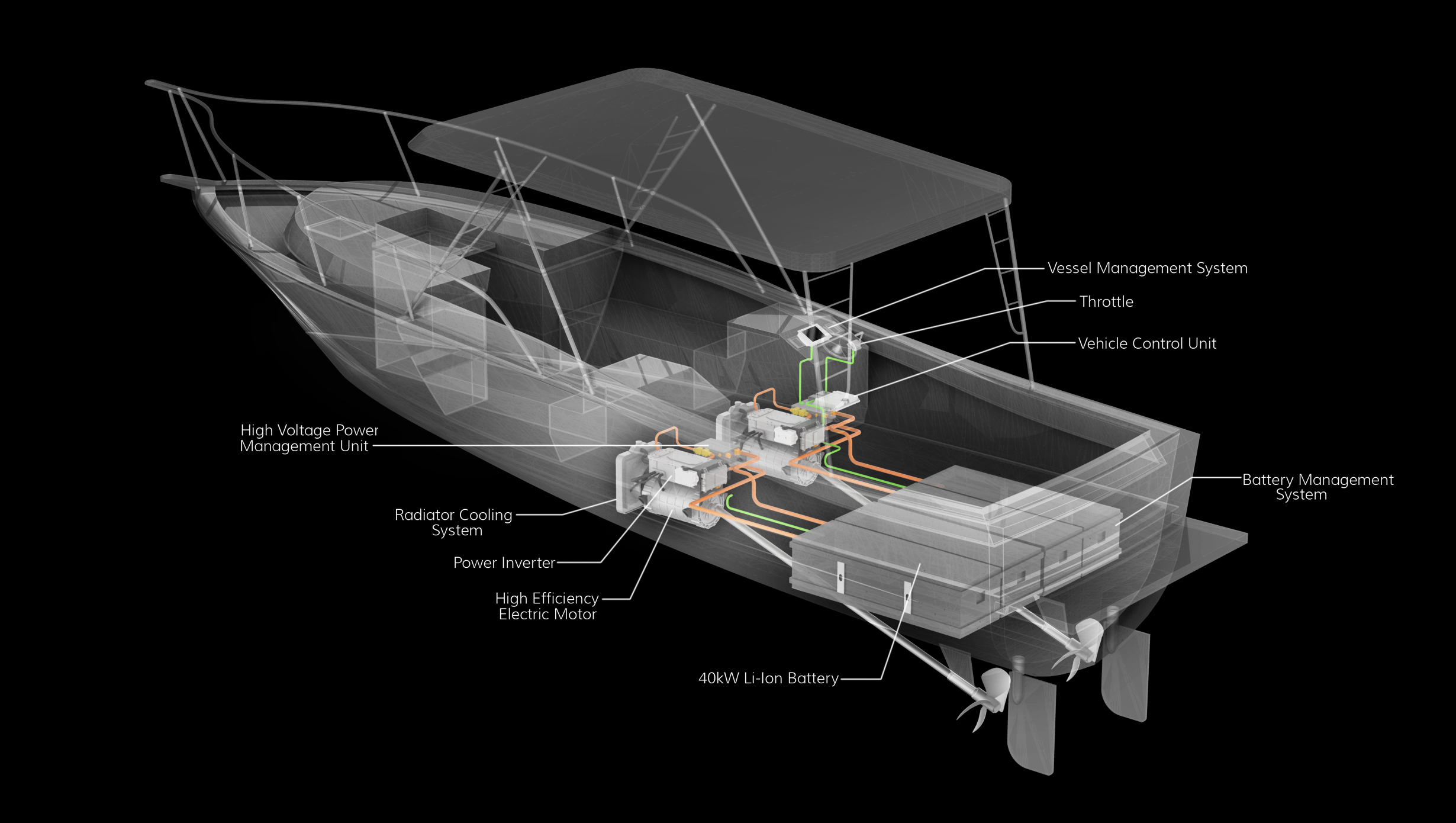

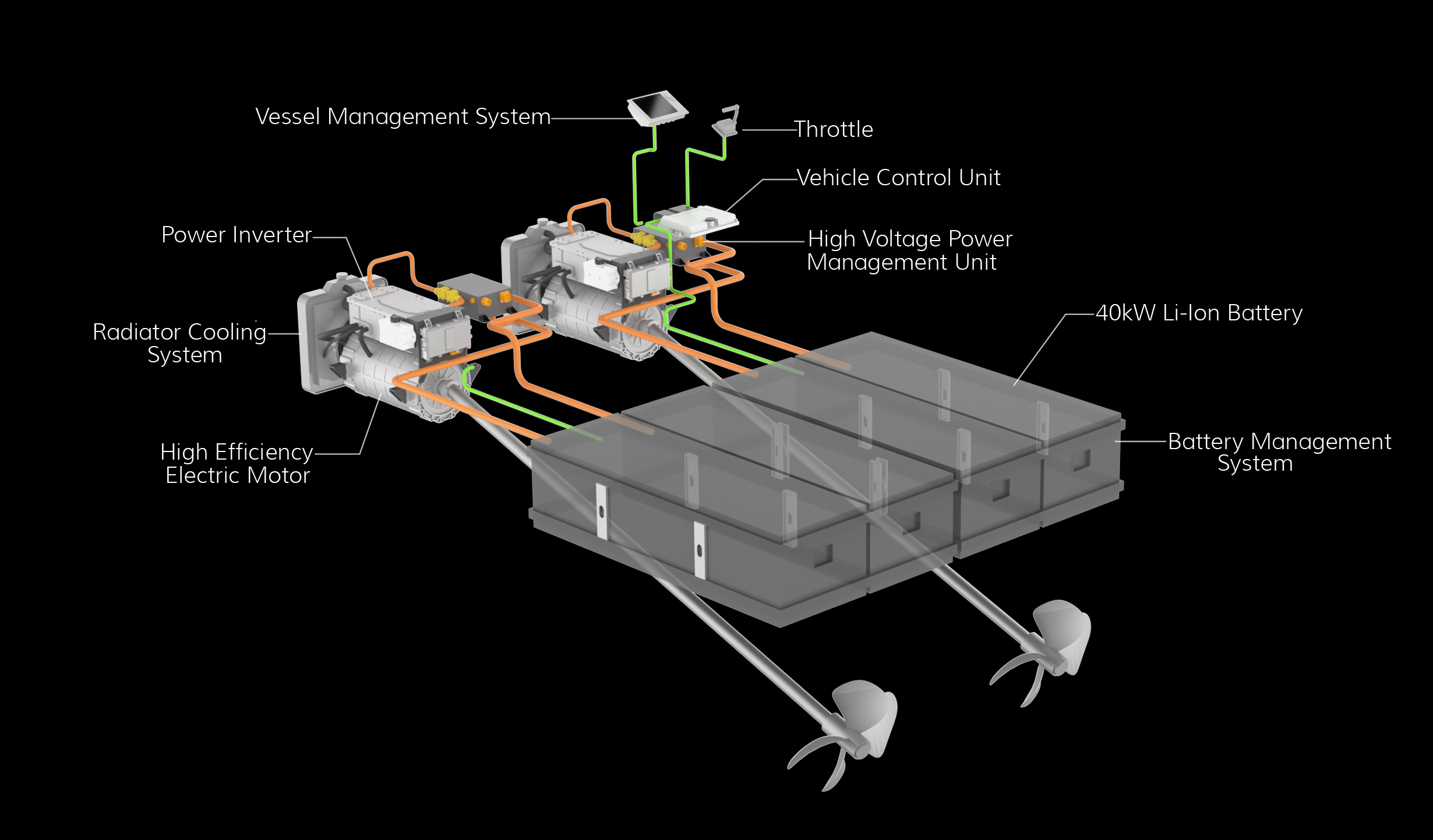

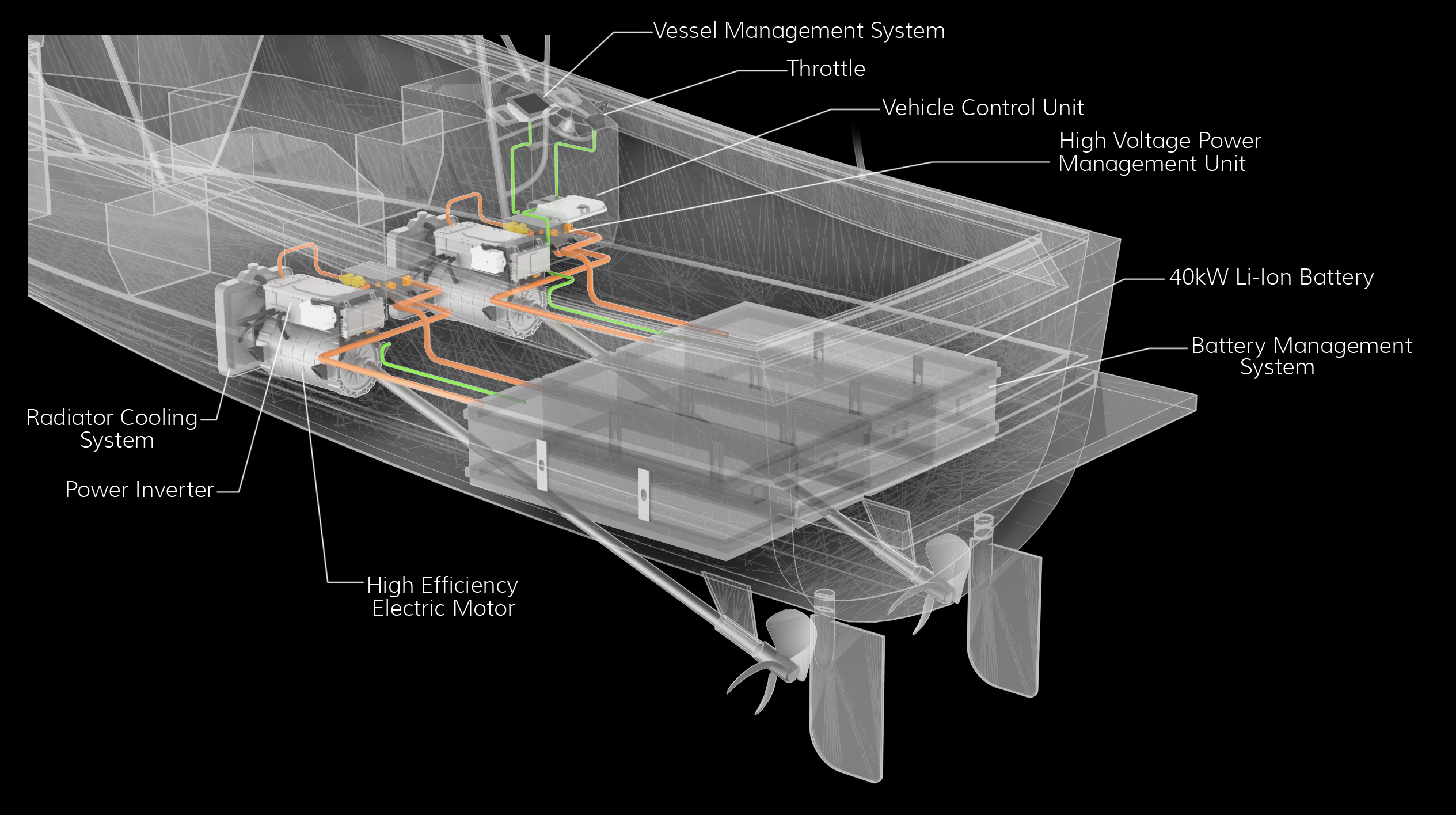

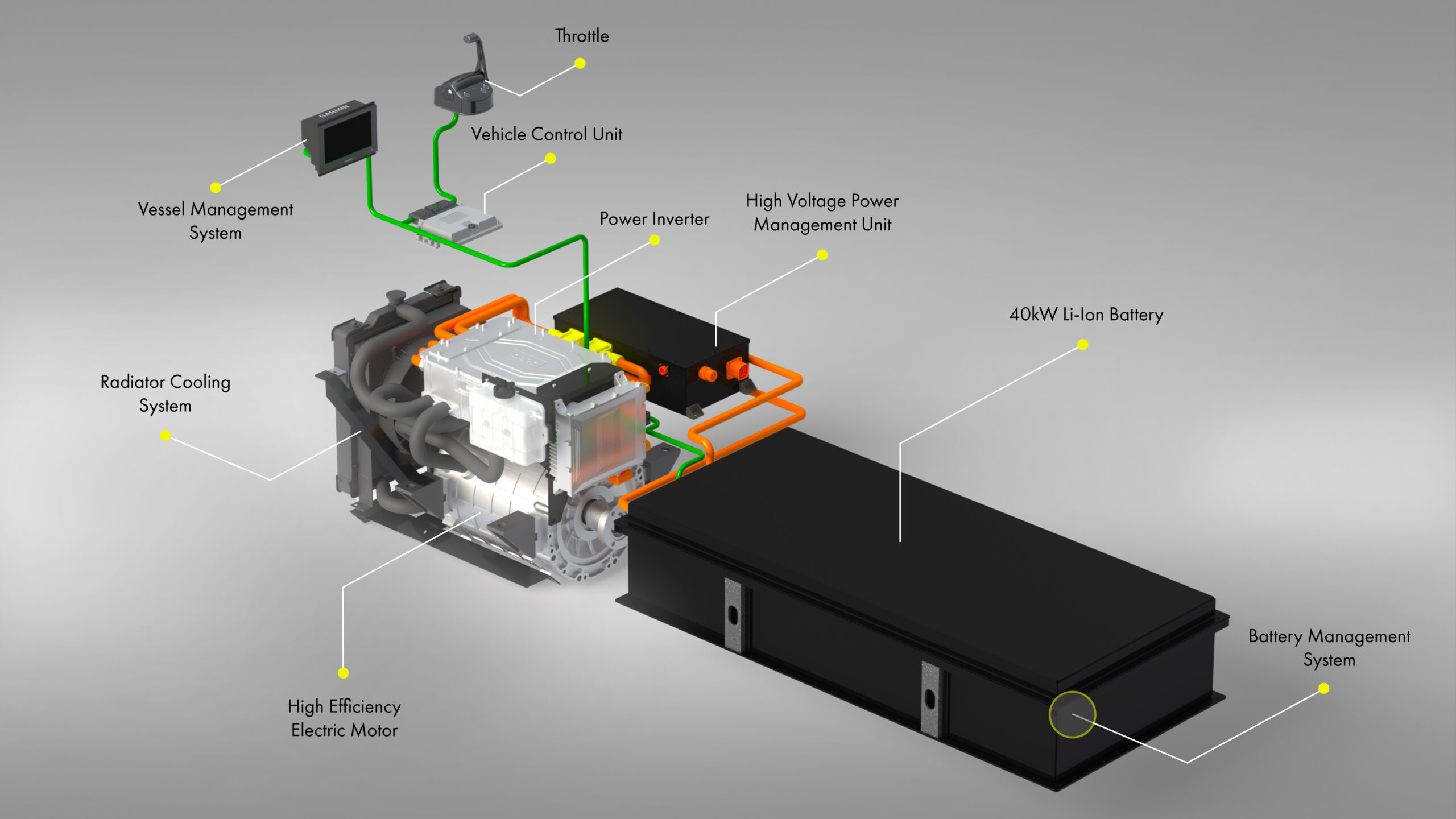

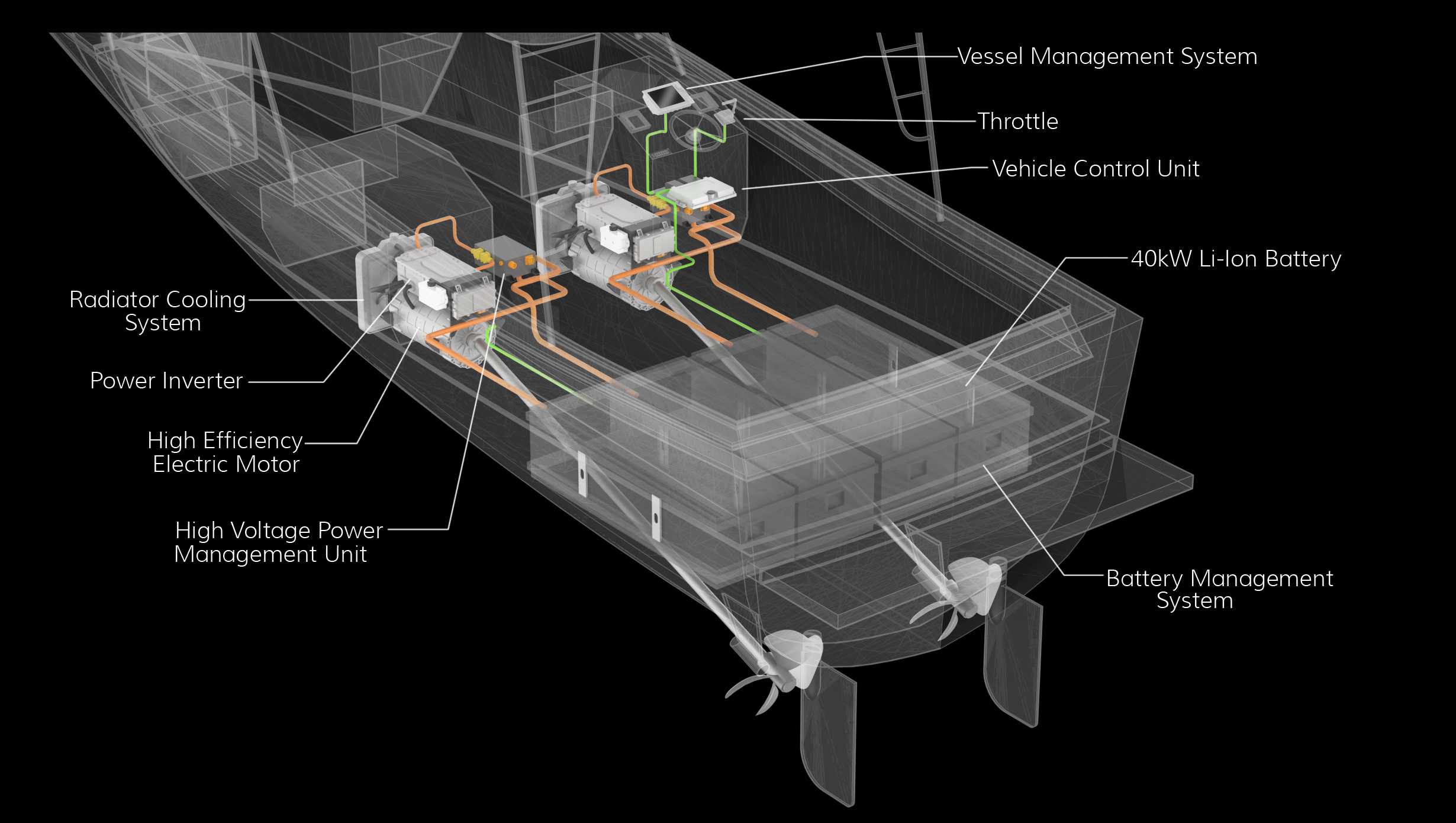

Aurora Drive system consists of following:

  • Li-Ion Battery Packs and battery monitor
  • Electric Motor and closed cooling system
  • Motor invertor
  • System control unit
  • Throttle
  • Multi-function display
  • On board Charger
  • Main power box + Shore power receptacle
  • 5G Accommodating app
  • Distribution box and complete wire harness

Aurora 100

Power: 134HP (100Kw) max
Torque: 737Ft-Lb (1000Nm) max at 955 RPM
Weight: 430lbs

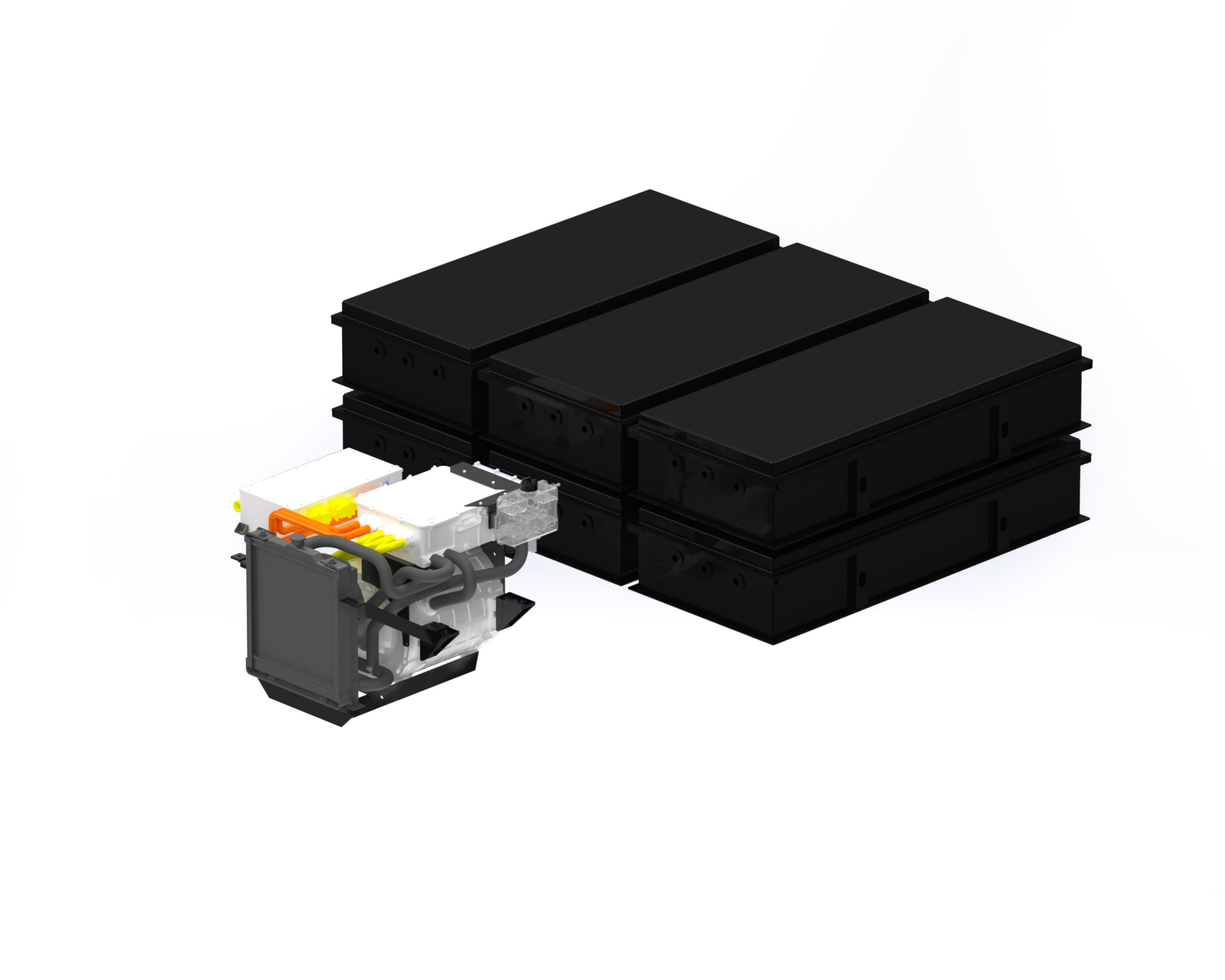

Battery: 370VDC 74KWh (1120lb) or 111 KWh (1680lb)

Aurora 125

Power: 168HP (125Kw) max
Torque: 1253 Ft-Lb (1700Nm) max at 700 RPM
Weight: 440lbs
Battery: 540VDC 111KWh (1680lb) or 222 KWh (3360lb)

Aurora 200

Power: 268HP (200Kw) max
Torque: 2581Ft-Lb (3500Nm)max at 550 RPM
Weight: 650lbs
Battery: 540VDC 111KWh (1680lb) or 222 KWh (3360lb)

All our system use 50A or 100A shore power for charging and can be upgrade to fast charging if the available in your marine.
Custom drive system can tailor made to customers specification and requirement.
